e-Loop Commercial
The e-Loop Commercial stands out as the premier offering in the e-Loop Catalogue lineup. With a rugged and functional design the Commercial Loop is ideal for any industrial environments.
Up to 10 year battery life (Exit Mode)
Up to 4 Year battery life (Presence Mode)
High security 128-Bit AES Encryption
Seamless Installation
Set-and-Forget auto calibration
Available in both Exit mode & Presence Mode
e-Loop Mini
The e-Loop Mini is the perfect solution for domestic properties. Despite sporting a compact design, the mini manages to fit the functionality of our commercial offerings into an impressive form factor.
Up to 5 year battery life (Exit Mode)
Up to 3 Year battery life (Presence Mode)
High security 128-Bit AES Encryption
Quick Non-Permanent Installation
Set-and-Forget auto calibration
Available in both Exit mode & Presence Mode
e-Loop In-Ground
The e-Loop In-Ground provides all the functionality of the commercial in a discrete form-factor. Sitting flush with the ground it’s ideal for both aesthetics and additional durability for heavy vehicles.
Up to 10 year battery life (Exit Mode)
Up to 6 Year battery life (Presence Mode)
High security 128-Bit AES Encryption
Quick Non-Permanent Installation
Set-and-Forget auto calibration
Available in both Exit mode & Presence Mode
e-Loop Micro
The e-Loop Micro touts the smallest form factor of all of the wireless e-Loop Catalogue. With an e-Trans 20 included, this kit is ideal for any gate installer looking to offer cost-effective automation to a customer’s gate.
Compact Diameter of ~110mm
Bundled with a e-Trans 20 for convenience
High security 128-Bit AES Encryption
Quick Non-Permanent Installation
Set-and-Forget auto calibration
Available in Exit mode
e-Loop Post Mount
Courtesy of Microtech Designs’ propensity for innovation, we have heard the concerns of the traditional loops’ all-weather efficacy and we are proud to offer the solution. The Post-Mounted e-Loop, allows a non invasive installation and a weather resilient detection. Removing the possibility of negative interactions of snow, rain and other unpredictable impediments.
e-Loop Wired
The Wired e-Loop offers all the features of the e-Loop catalogue, without any concern of battery life. With the ability to set and forget, you can trust this loop for consistent and accurate detection
Modular shroud for In-Ground and
Above-Ground installationWired connection for Peace of mind
High security 128-Bit AES Encryption
Seamless Installation
Set-and-Forget auto calibration
Available in both Exit mode & Presence Mode
e-Radar
Microtech Designs is proud to introduce the e-Radar. The next generation of entry safety devices, avoiding the inherent problems coupled with using a traditional PE Beam. Due to the advanced radar technology, the e-Radar remains unaffected by sun, fog, dust, rain and snow. With the ability to determine the difference between, vehicles and people. With only a single unit needed.
e-Loop Post Mount Commercial
The e-Loop Post Mount Commercial is engineered to address the challenges posed by traditional loops. With its innovative design, it features a sleek, vandalism proof and discreet form factor. Ensuring durability and weather resistant detection. The result is a dependable solution that meets the needs of modern infrastructure without compromising efficiency or effectiveness.
e-Trans 300
The upcoming e-Trans 300 is set to be the forerunner of the e-Trans range, ideal for large commercial systems.
Supports 300 e-TX Remotes &
4 e-LoopsWiring Info: 12mA 10-36V DC
10-26 AC
Optional: LDC 4.5mAAdvanced Sequence Mode Capability
Additional Programmability & Diagnostics
3 Channels
e-Light Compatibility
e-Trans 100
The e-Trans 100 is the first in the flagship e-Trans range. With a greater capacity for remotes & e-Loops.
Supports 100 e-TX Remotes &
4 e-LoopsWiring Info: 12mA 10-36V DC
10-26 AC
Optional: LDC 4.5mASequence Mode capability
2 Channels
e-Light Compatibility
e-Trans 200
The e-Trans 200 is best suited to medium to large systems. With a number of advanced features
Supports 200 e-TX Remotes &
4 e-LoopsWiring Info: 12mA 10-36V DC
10-26 AC
Optional: LDC 4.5mASequence Mode Capability
Additional Programmability & Diagnostics
2 Channels
RS-485 Capability
e-Trans 20
The e-Trans 20 is the perfect solution for low-demand or domestic gate systems. Sold Separately or Included with the
e-Loop Micro.
Support for 20 e-TX Remotes & 2 e-Loops
Wiring Info: 4.5mA 12-24DC
1 Channel
e-Trans 50
The e-Trans 50 is the ideal intermediary solution, for small to medium size commercial applications. Included in the Commercial, In-Ground & Mini e-Loop Kits.
Supports 50 e-TX Remotes &
4 e-LoopsWiring Info: 4.5mA 10-36V DC
1 Channel
e-TX Remote
The e-TX remote is stylish and compact controller, easily programmed to operate with any product of the e-Trans line. Making the perfect edition for single-loop systems, with four programmable buttons ideal for handling open-close operations and more.
AC-DC Converter
Used to install an e-Trans 20 or e-Trans 50 (DC Only) into an AC system. Making installation very straightforward, screw the wires into the provided plug and the device handles the rest. With a power light to confirm functionality.

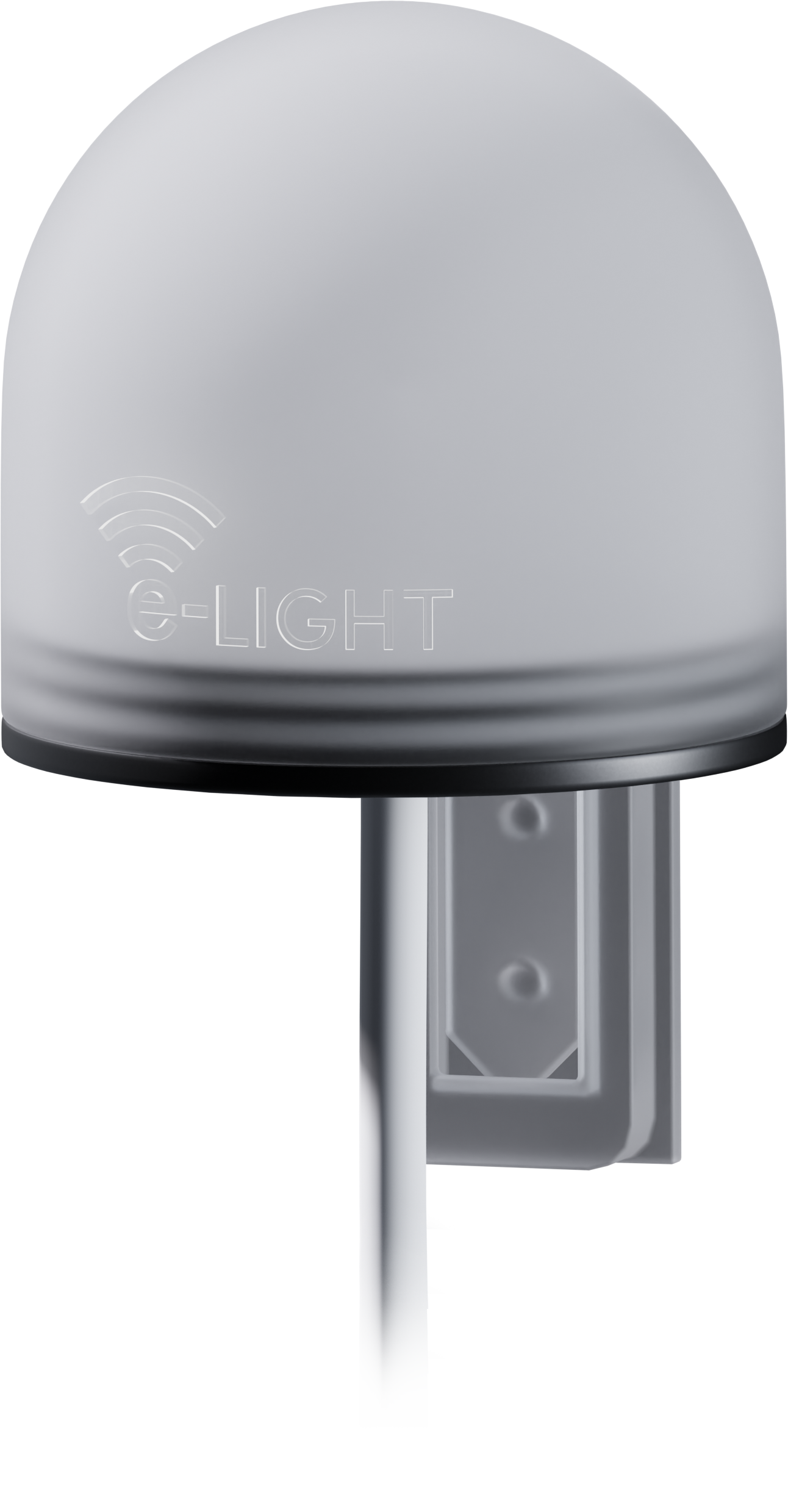

e-Light
The e-Light is a fantastic edition to ensure your e-Loops easily monitored. By attaching this to one of our compatible transceivers, you can offer all installation sites an easy way to monitor battery condition and loop functionality. Mount in a prominent place and when a loop’s batteries get low, or the loop loses connection the light will conspicuously flash. Additional light sequences indicate correct functionality.
e-Trigger
The e-trigger is a versatile accessory designed to seamlessly integrate the
e-Loop system into a wide range of third-party accessories. This innovative solution allows users to pair e-Loop technology with intercoms, keypads, etc. With its user-friendly design and reliable performance, the e-trigger is an essential addition for further integrating your system with third party accessories.
12dBi Antenna
The 12dBi Antenna is a fantastic addition to any e-Trans, greatly extending the range and allowing use of metal enclosures that block transmissions.
30dBi Antenna
The 30dBi Antenna is a fantastic addition to any e-Trans, with a substantial gain in operational radius. With a magnetic base, mounting is made simple.
Diagnostic Remote
The Diagnostics Remote is a crucial piece of equipment for any frequent installer, lending the user advanced control over
e-Loop settings and diagnostics for trouble shooting. Making a number of variables adjustable on the e-Loops. Once connected to a loop, you can view live input values, transmitted almost instantaneously from the loops.
Flush Mount Antenna
The Flush Mount Antenna is Microtech Designs’ solution for extending transmission range, in a low profile and vandalism proof formfactor. Ideal for metal enclosures that block transmissions.
e-Light Module
This module serves as an alternative to the Microtech Designs e-Light, for industrial/commercial applications; a larger light may be needed. This module allows integration of many third party lights into the e-Light system. Simply wire your light into the module and connect to one of the compatible transceivers (e-Trans 100, e-Trans 300). The module handles the rest.
e-Keypad
Introducing Microtech Designs’ brand new -Keypad. A sophisticated addition to any gate system.
